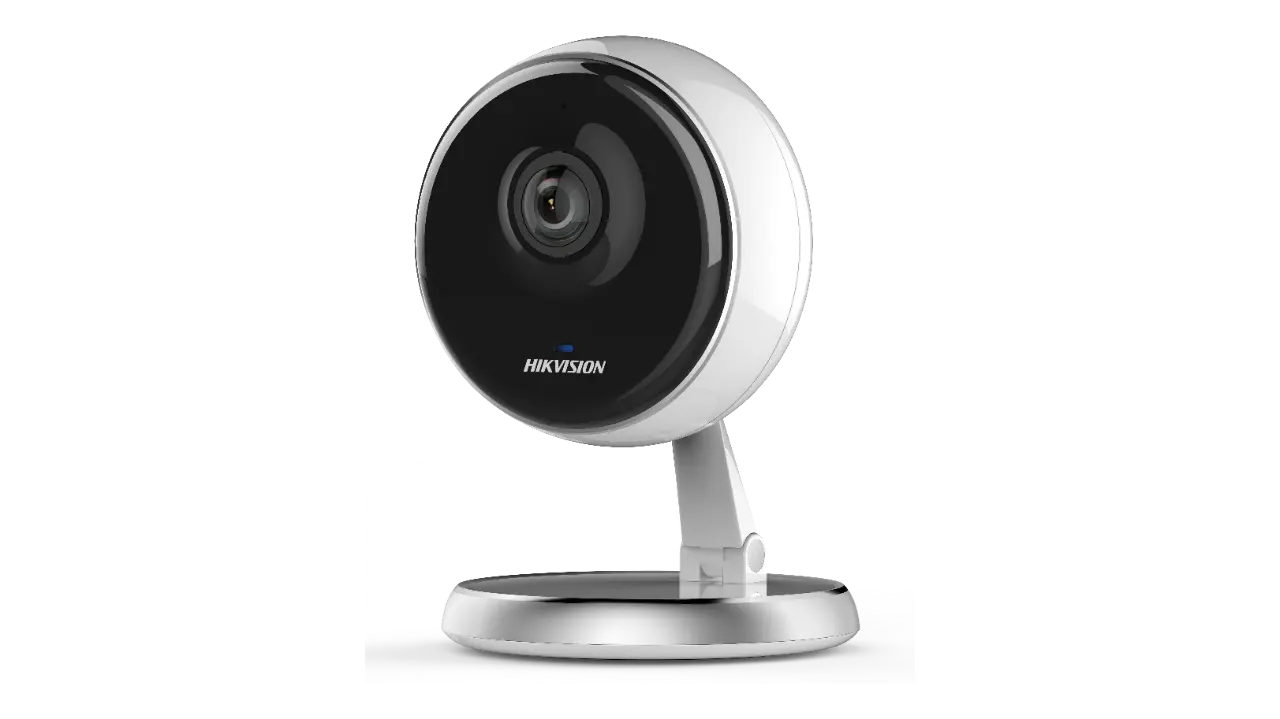

2 MP Indoor Audio Fixed Cube Network Camera

• High quality imaging with 3 MP resolution
• Efficient H.265+ compression technology
• Clear imaging even with strong back lighting due to 120dB WDR
• Up to 128 GB SD card slot for storage
• Provides real-time security via two-way audio
• Wi-Fi connection and easy installation
• Hik-Connect cloud service and app for remote management and viewing of devices
• 180° FOV for wider monitoring.

Specifications

Contact:

9851274856 | 9808421932

Kathmandu, Nepal

Camera

• Image Sensor
• 1/3" Progressive Scan CMOS
• Min. Illumination
• Color: 0.01 Lux @ (F1.2, AGC ON), 0 Lux with IR, ,Color: 0.028Lux @ (F2.0, AGC ON), 0 Lux with IR
• Shutter Speed
• 1/3 s to 1/100,000 s
• Slow Shutter
• Yes
• Day &Night
• IR Cut Filter
• Wide Dynamic Range
• 120dB
• DNR
• 3D DNR
• Axis Adjustment
• Pan: 0° to 360°, tilt: -75° to 65°, rotate: 0° to 360°

Lens

• Focal Length
• 1.68 mm
• Aperture
• F2.0
• FOV
• Horizontal field of view: 180°, Vertical field of view: 85°
• Lens Mount
• M12

Illuminator

• IR Range
• Up to 10 m
• Wavelength
• 850nm

Network

• Alarm Trigger
• Motion detection, video tampering, network disconnected, IP address conflict, HDD full, HDD error, illegal login
• Network Storage
• Support Micro SD/SDHC/SDXC card (128G), local storage and NAS (NFS,SMB/CIFS), ANR
• Protocols
• 802.11b: DQPSK, DBPSK, CCK,802.11g/n: OFDM/64-QAM, 16-QAM, QPSK, BPSK
• API
• ONVIF (PROFILE S, PROFILE G), ISAPI
• Simultaneous Live View
• Up to 6 channels
• User/Host
• Up to 32 users,3 levels: Administrator, Operator and User
• Client
• iVMS-4200, Hik-Connect, iVMS-5200

Video

• Max. Resolution
• 1080 × 720
• Main Stream
• 50Hz: 25fps (1920 × 1080, 1280 × 720),60Hz: 20fps (2304 × 1296), 30fps (1920 × 1080, 1280 × 720)
• Sub Stream
• 50Hz: 30fps(640 × 360, 480 × 272, 432 × 240)
• Video Compression
• Main stream: H.265/H.264,Sub stream: H.265/H.264/MJPEG
• H.264 Type
• Main Profile/High Profile
• H.265 Type
• Main Profile
• Video Bit Rate
• 32 Kbps to 8 Mbps
• SVC
• Support H.264 and H.265 encoding

Audio

• Audio Compression
• G722.1/G711ulaw/G711alaw/G726/MP2L2/PCM
• Audio Bit Rate
• 64Kbps(G.711)/16Kbps(G.722.1)/16Kbps(G.726)/32-192Kbps(MP2L2)
• Environment Noise Filtering
• Yes
• Audio Sampling Rate
• 16 kHz, 32kHz, 44.1kHz, 48kHz

Smart Feature-Set

• Region Of Interest
• Support 1 fixed region for main stream and sub-stream separately


• Image Enhancement
• BLC/3D DNR
• Image Setting
• Saturation, brightness, contrast, sharpness adjustable by client software or web browser
• Day/Night Switch
• Auto/Schedule

Wi-Fi

• Wireless Standards
• IEEE 802.11b/g/n
• Frequency
• 2.412 GHz to 2.4835 GHz
• Channel Bandwidth
• 20M/40M
• Security
• WPA, WPA2
• Transfer Rate
• 11b: 11Mbps, 11g: 54Mbps, 11n: up to 150Mbps
• Wireless Range
• 50 m

Interface

• Audio
• 1 built-in mic, 1 built-in speaker, two-way audio, mono sound
• On-Board Storage
• Built-in Micro SD/SDHC/SDXC slot, up to 128 GB

General

• General Function
• One-key reset, anti-flicker, dual streams, heartbeat, password protection, privacy mask, watermark
• Reset
• Yes
• Startup And Operating Conditions
• -10 °C to +40 °C (14°F to +104 °F), Humidity 95% or less (non-condensing)
• Power Supply
• 5 VDC ± 10%, micro USB
• Power Consumption And Current
• 5 VDC, 1A, max. 6.5W
• Material
• Bracket: metal,Camera shell: plastic
• Dimensions
• Φ78.1 mm × 110.2 mm (Φ3.07" × 4.34")
• Weight
• Camera: Approx. 230 g (0.51 lb.)
• Interface Protection
• TVS 2000V Lightning Protection, Surge Protection and Voltage Transient Protection

Compression Standard

• H.264+
• Yes
• H.265+
• Yes
